Light sensor using LDR

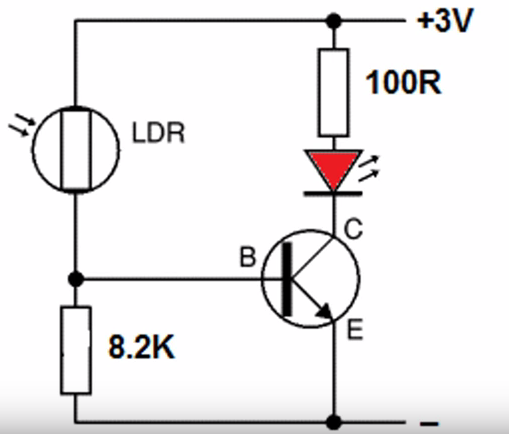

The following circuit is simple circuit for sensing the presence of light
Can change sensitivity of circuit by change the value of 8.2k resistor
Light sensor using LDR

Light sensor using LDR
